- Perfectly Compatible: 700-506 Gas Valve fits for Robertshaw 700, can be compatible with various gas types such as natural, man-made, mixed, LPG and LPG/air mixtures
- Exquisite Design: Furnace Gas Valve is not only compact but flow rates up to 720000 BTU, it was specifically designed for intermittent pilot, direct spark and hot surface applications, it contains a manual valve, pilot valve and main air pressure regulator and is well built and fully functional
- Wide Range of Applications: Combination Gas Valve can be widely used in boilers, central heating equipment, portable household stoves and wall-mounted heaters, regardless of the occasion, can be used in both residential and commercial premises
- Easy to install: Gas stoves are easy to use with standard NEMA terminals and are flexible in installation so you can adjust them to suit your needs
- Quality Guarantee: To ensure stable performance, the items are 100% quality tested before leaving the factory and have a longer service life than other types of products, saving you money and time, if you have any questions, please feel free to contact us
Features:
Unlimited Locations, Widely used.

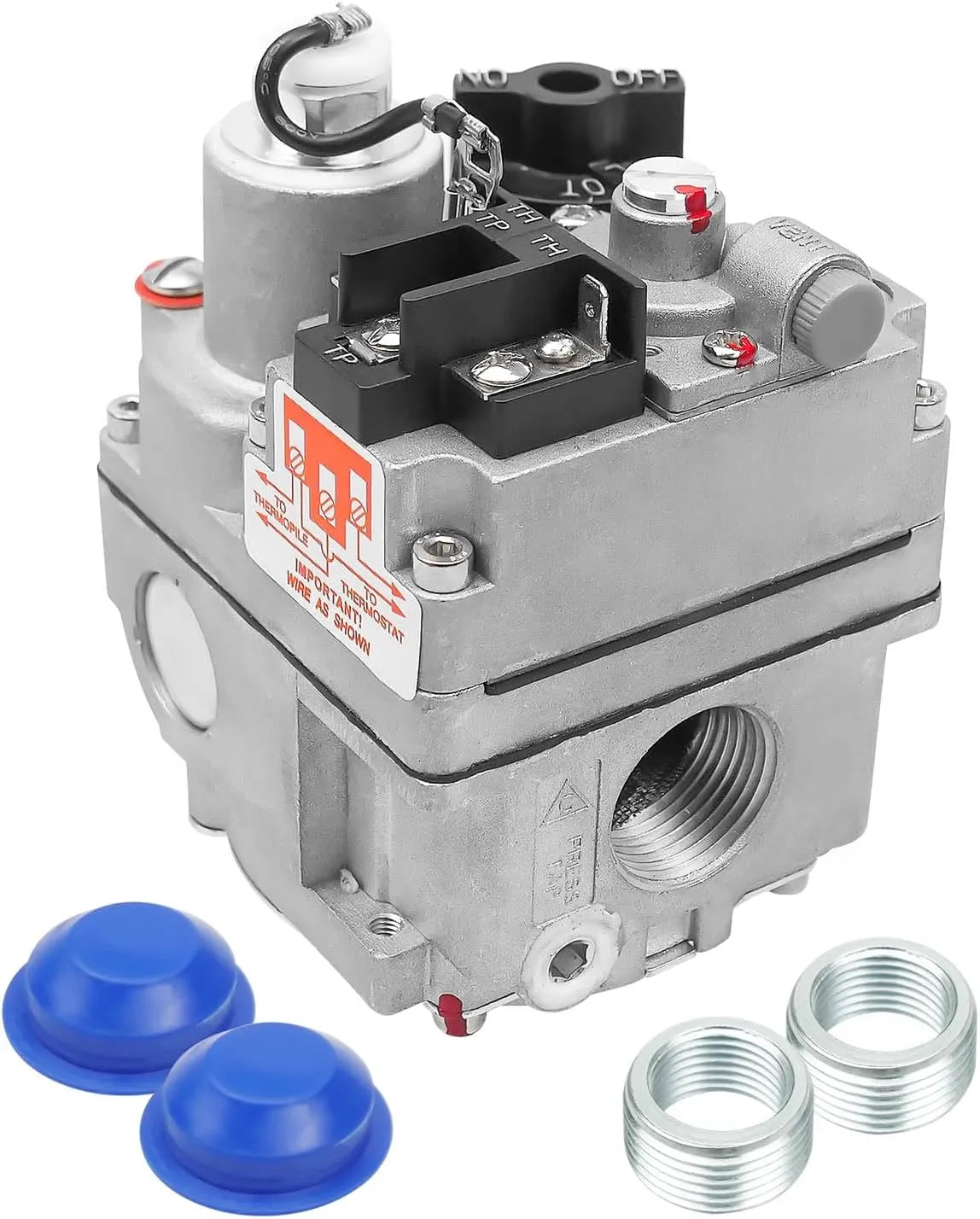

700-506 Gas Valve is perfectly compatible with the Robertshaw 700 Series,
It has a capacity of 300,000 BTU with a maximum usage of 720,000 BTU and is capable of regulating 3.5" WC natural gas.
Furnace Gas Valve is a wall thermostat driven combination control with standard features including pilot outlet, pilot gas filter and pilot adjustment key.
The item is compatible with a wide range of gas types, just like natural, manufactured, mixed, LPG and LPG/air mixtures, etc.
It is suitable for many residential and commercial premises and can be widely used in wall-mounted heaters, boilers, portable household stoves and central heating equipment.
Well-made and Fully Functional.
All of our products are carefully produced in small batches.
Designed for intermittent pilot, direct spark and hot surface applications, the products are 100% quality tested at the factory for consistent performance and long life.
Flexible Installation, Easy to Use.
Combination Gas Valve can be installed in any position, you can choose according to your needs, more flexible.
If you have any questions in the process of use, please feel free to contact us, we will reply within 24 hours.
Product Information:
Package Dimensions: 6.30*5.31*4.49 inches
Item Weight: 2.07 Pounds
Color: silver white
Material: aluminum alloy
Series Applications: Volt Diaphragm / Solenoid Valves
Pressure Regulation: 3.5" WC Natural Gas
Electrical rating: 250mV to 750mV
Capacity: 300,000 BTU
Inlet Size/Outlet Size: 3/4"
Ambient temperature: -40°to 175°F
